Tempmaster Pro | Automatic Smoker Temperature Control

Model: TEMPMP

The Flaming Coals Tempmaster Pro | Automatic Smoker Temperature Control unit is the ideal add-on to take cooking in your smoker to the next level of control and is the best way to control your smoker temperature.  Simply enter your desired cooking temperature using the control unit, and the included probe monitors the ambient temperature in your smoker – adjusting the fan speed to ensure the right amount of air is reaching the fire to maintain your pre-selected temperature. All components of the Flaming Coals Tempmaster Pro run on a single 240v power connection and can also operate on 12v supply (leads not included).

One nifty little feature of the Tempmaster Pro Digital Thermostat for your BBQ or smoker is the 3 stage fan speed control. You don’t want the fan working at 100% speed when you reach your desired temperate as this will create temperature spikes in your cooking. You want the fan to slow down when you are close to your set temperature to eliminate a spike. This can all be adjusted in the settings.



Features:

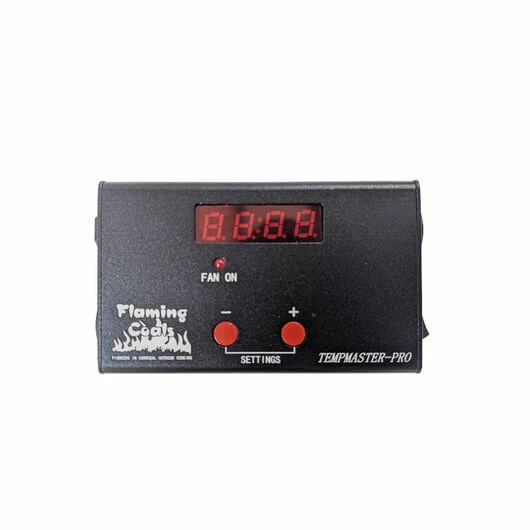

• Easy 2 button control unit – Simply push up or down to set your desired cooking temperature
• Illuminated red temperature display for easy reading
• Extruded aluminium case for the control unit – Fire and plastic don’t go well together
• Solid stainless steel fan housing – once again, fire and plastic don’t go well together.
• High quality Sennheiser gold temperature probe connection to give more accurate measurements
• Splash resistant high temperature probe and with a 2 meter long cable so you can spritz your meat as much as you want
• 240v power supply
• The unit can be calibrated to show Fahrenheit or celsius
• 3 stage fan speed control so you can adjust the fan speed to suit your needs
• Calibratable thermometer so you can fine tune your temperature display to suit your smoker.
• Adapters available to suit a variety of BBQs and smokers



Smoker Temperature Control Settings:

• To set the desired temperature simply press + or – buttons
• To enter the advance settings hold down the + and – buttons together for 3 seconds. To cycle the settings menu, release the 2 buttons and quickly press them again for 3 seconds
• All changes are automatically saved



Digital BBQ Thermostat Advance settings are:

• FC = Press + or – to cycle between Fahrenheit or celsius
• PD = Adjust/calibrate probe display temperature. Press + to increase the display temperature and – to decrease the display temperature
• Hi = Adjust the fan speed as a percentage when the temperature reaches 80 – 95% of your set target temperature. So, if you set your desired pit temperature to be 200°F and you set the Hi number to 75 this means that when the pit reaches 160°F (80% of 200°) the fan will slow down to 75% of its maximum speed until the pit temperature reaches 190°F (95% of 200°). After this, the control unit goes to the Lo fan settings.
• Lo = Adjust the fan speed as a percentage when the temperature reaches 95 – 100% of your set target temperature





Adaptor Options:

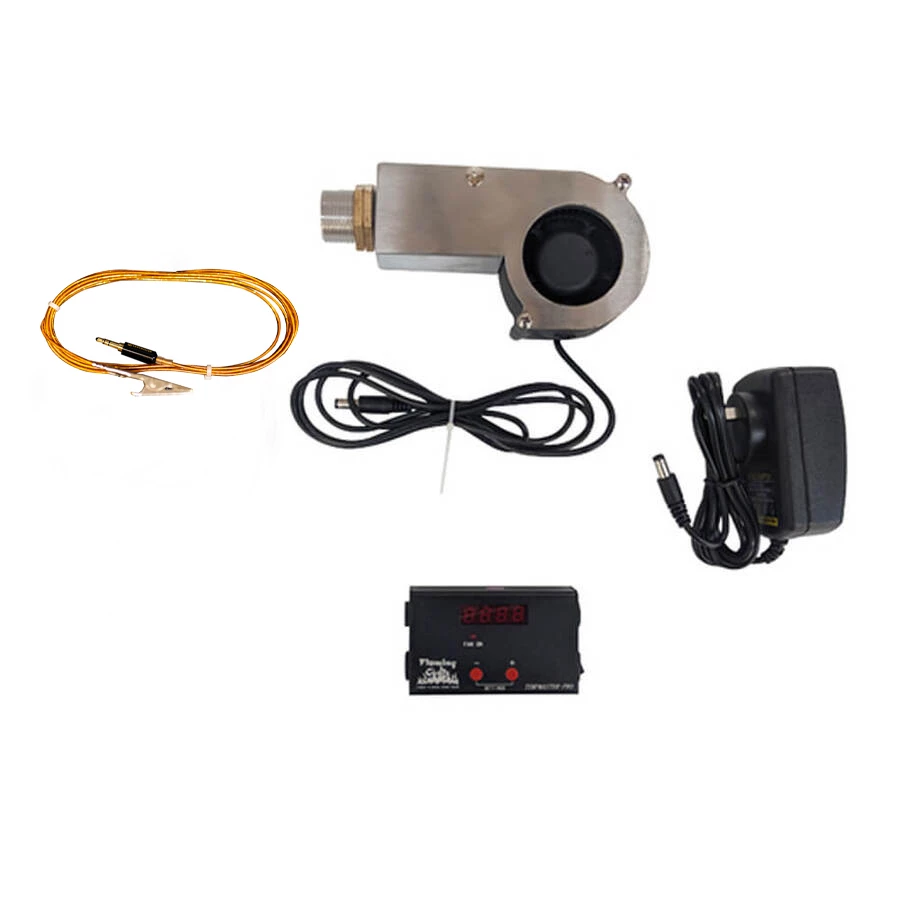

• Standard:

  • Tempmaster control unit
  • Fan with stainless steel housing and 2 brass nuts – 3/4 inch BSP screw-in thread, Just drill a hole in your smoker and attach this fan
  • 2-meter long temperature probe
  • Power Transformer



• Universal Adapter:

  • 110mm diameter Universal Adapter that suits bullet smokers, kettles, Flaming coals offset smoker and many other smokers
  • Tempmaster control unit
  • Fan with stainless steel housing and 2 brass nuts
  • 2-meter long temperature probe
  • Power Transformer



• BSP Adapter:​

  • BSP Adapter that  suits the Flaming Coals Gravity Feed Smoker and other smokers with a female 2 inch BSP fitting
  • Tempmaster control unit
  • Fan with stainless steel housing and 2 brass nuts
  • 2-meter long temperature probe
  • Power Transformer



• SNS Adaptor
  • 90° mounting angle also ensures the fan is neatly out of the way so it doesn’t accidentally get knocked during your cook
  • Reduction coupling with locking nut that allows you to attach the connection you SNS kettle BBQ
  • Tempmaster control unit
  • Fan with stainless steel housing and 2 brass nuts
  • 2-meter long temperature probe
  • Power Transformer



Read A Raving Review on the Flaming Coals Tempmaster Pro

Note: while this temperature controller works brilliantly on gravity feed smokers, bullet smokers, kettles and offset smokers, you may need a larger fan on certain models of Reverse Flow Smokers
